Kuvaus

Wireless or Wired

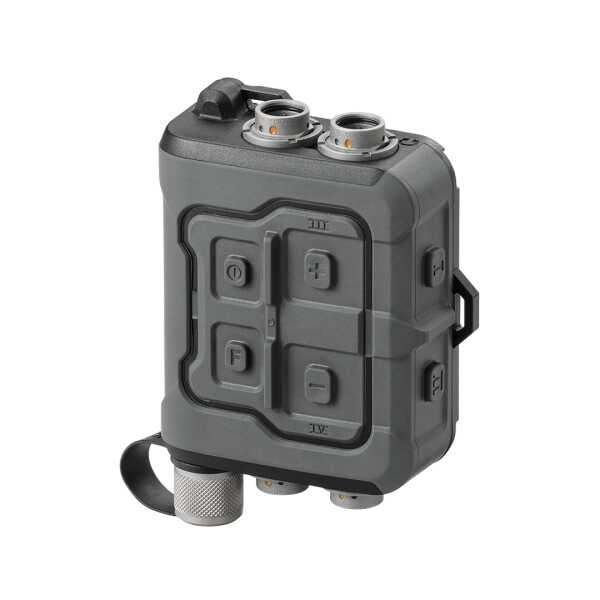

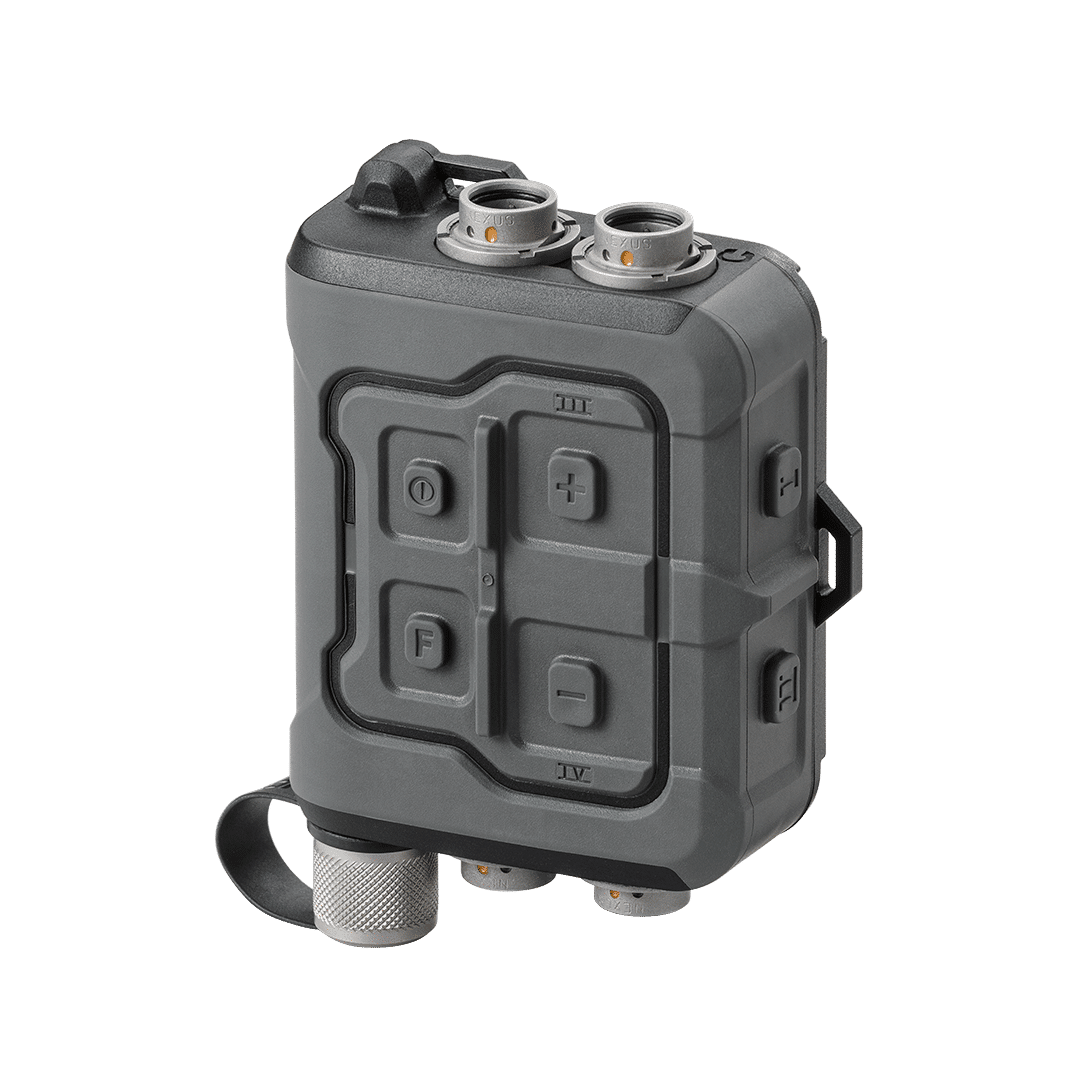

Utilizing near field magnetic induction, the 3M PELTOR System Control Unit helps to improve cable management through cord-free connection to the 3M PELTOR ComTac VII Headset, and 3M PELTOR Tactical Earplugs, TEP-300. There is also a port for an optional wired connection to the 3M PELTOR ComTac VII Headset.

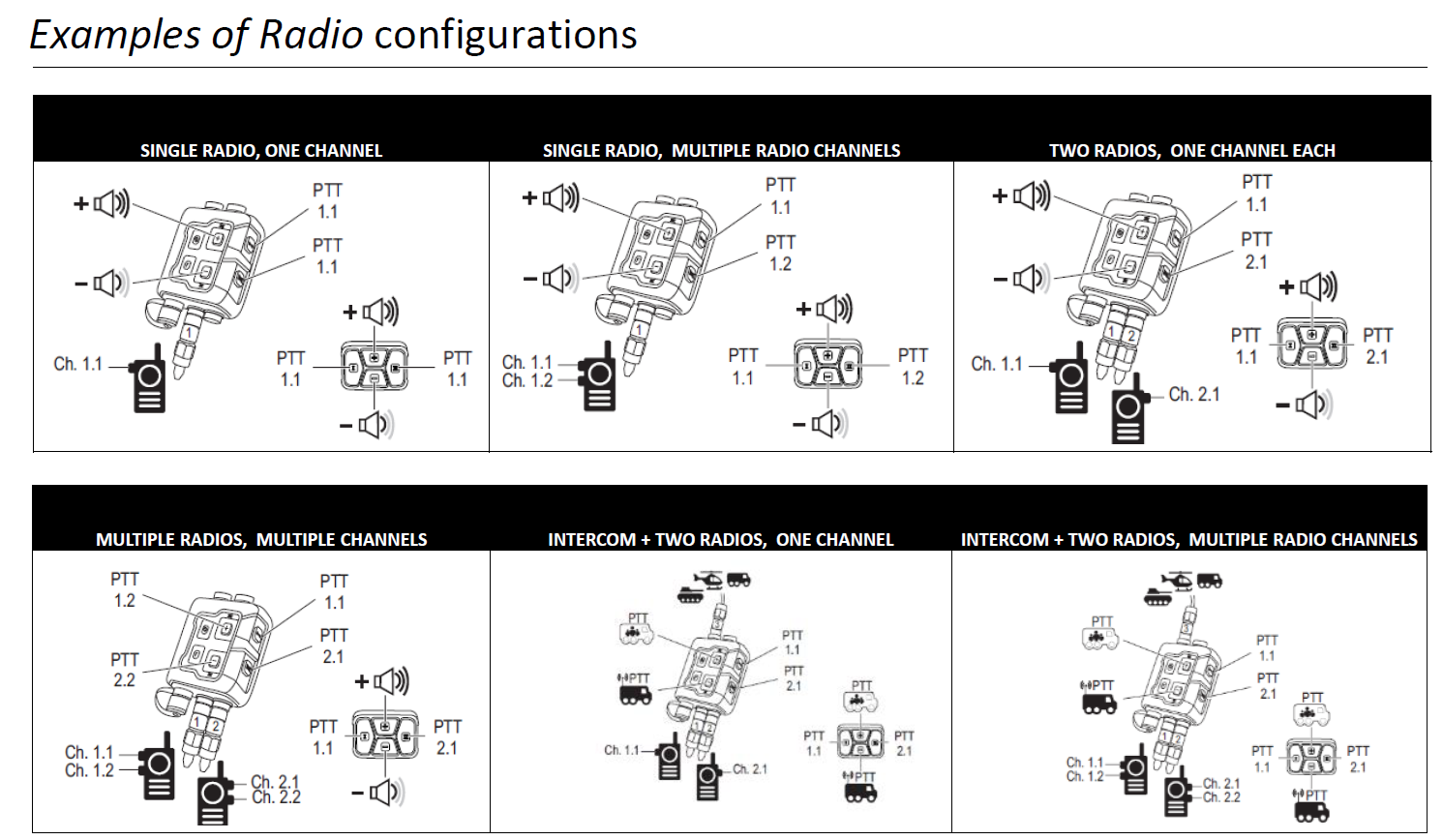

Multiple Radios

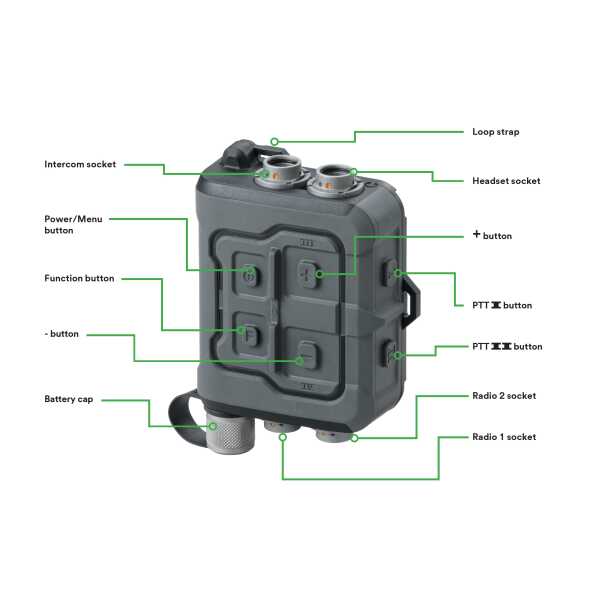

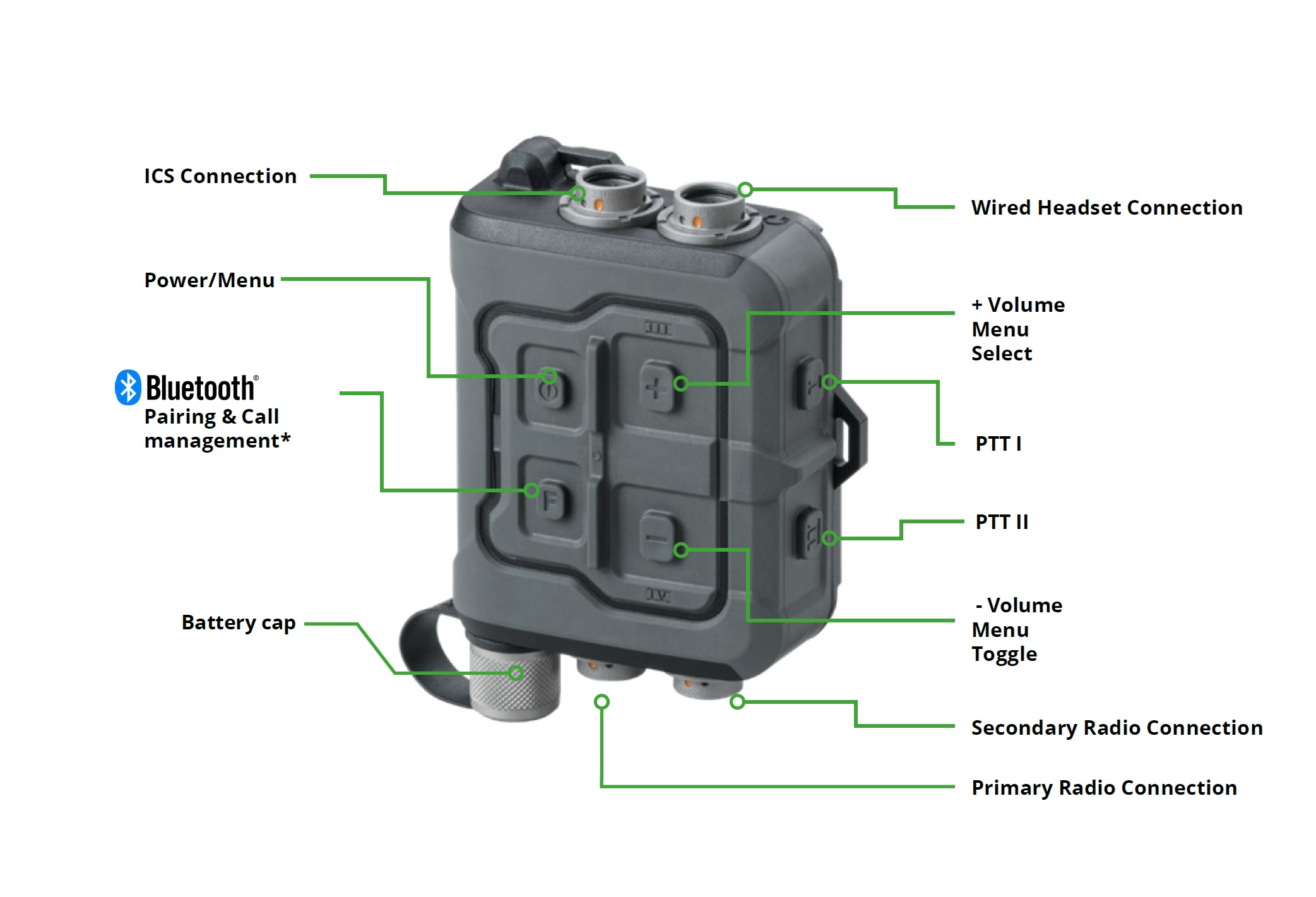

The SCU is equipped with three com ports for radios and intercom systems, and is designed to handle multiple radios with multiple channels. In such scenarios, the user is able to select one of three preset sound profiles;

Mix: The sound is heard equally in both left and right ear.
Surround: The sound will be perceived as it is coming from different directions, depending on which channel the sound is transmitted from.
Single: The sound will only be heard in one of the ears.

Wireless

Utilizing Near Field Magnetic Induction (NFMI) technology, the 3M PELTOR Tactical Modular Audio System lets you experience wireless freedom through a cable-free connection between the 3M PELTOR System Control Unit and the TEP-300 or ComTac VII Headsets. Near Field Magnetic Induction is a short range, digital, wireless physical layer that communicates by coupling a tight, low-power, non-propagating magnetic field between devices. The range is approximately 50 cm (20 in). The steep degradation of NFMI signal strength as a function of distance increases privacy and reduces issues with interference compared to traditional wireless technology. The SCU is also available with Bluetooth technology for those who also prefer a wireless connection to external devices.

Key Features SCU-300:

Single, dual & multi comms configurable
Allows single and multi-channel radios & ICS connectivity
Bluetooth® cellphone connection capable
Audio management with Mix, Split or Surround
One time, voice guided set up
After initial set up – turn on and go!
No external interface programming
Single button system shutdown
Designed for left-and right-handed operations
Buttons: Easy to find. Easy to Identify. Easy to Press. Provisions to prevent accidental activation.
MOLLE Compatible
Tested according to the applicable parts of military standards
Operating Temperature: -20°C to 55°C
Waterproof Rating: IP68
Operating time: Approximately 30 h
Battery Type: 2x AAA
